19"1U UTP CAT6 24-port Patch Panel
19"1U UTP CAT6 24-port Patch Panel
Knightsbridge

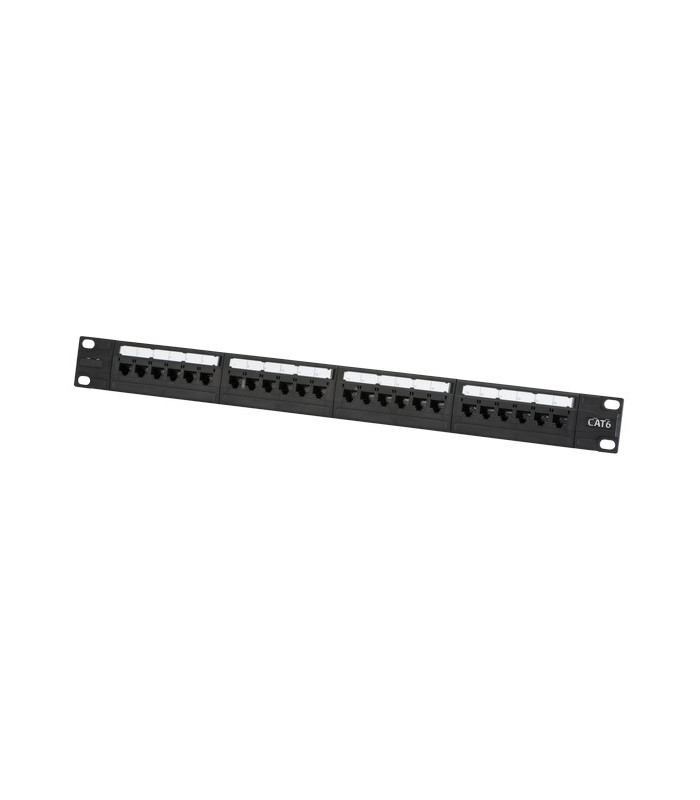

Knightsbridge 19"1U UTP CAT6 24-port Patch Panel - NETC624

1 - 2 working days delivery
£63.65 (VAT incl.)
82 items in stock
Description
Premium grade modular type patch panel. Features - 19" rackmount - 1U - 24-port - UTP CAT6 - 110 and Universal IDC - RJ45 ports (Phosphor Bronze with 50 micron gold plating) - Compliant to ANSI TIA EIA-568-C.2, ISO IEC 11801, ANSI TIA EIA-569-B, ISO IEC 60603-7, ANSI TIA EIA-310-D, PoE+ Specification - Insulation Resistance: greater than 500MΩ - Dielectric Withstand Voltage: 1000V DC - Contact Resistance: less than 20 mΩ - Current Rating: 1.5A @ 68℉ - Plug insertion Life: 750 times RJ45 plus 200 times - Contact Force 99.2g (3.5oz) FCC Plug - Plug Retention Force: 30lb (133n, 13.3Kg) - 110/Universal IDC Insertion Force: 4.5Kg minimum - 110/Universal IDC Retention Force: 0.5Kg minimum - Temperature Test: -40 to 150℉ (-40 to 66℃)
Read moreShow less
Product Details
NETC624

Technical Specifications

Item Number
NETC624
Finish
Black
Material
Polycarbonate
IP Rating
IP20
Height (cm)
4.445
Width (cm)
48.26
Depth (cm)
3.164
Weight (kg)
0.63
Colour
Black
Height Range (cm)
0 - 20
Width Range (cm)
40 - 60
Depth Range (cm)
0 - 20
Type
Data
Categories
Patch Panels
Availability
Express Delivery
