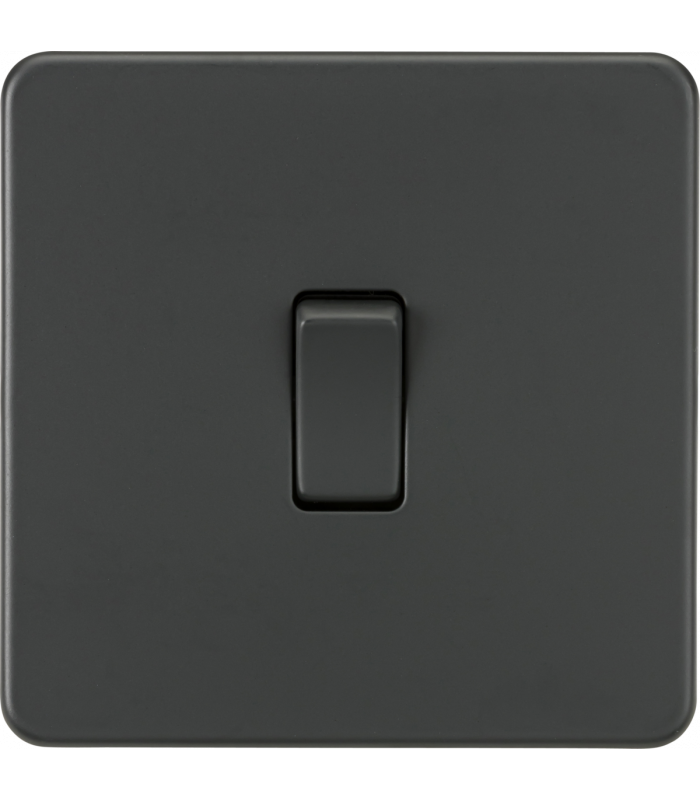

Screwless 10AX Intermediate Switch - Anthracite 230V IP20

1 - 2 working days delivery
£9.16 (VAT incl.)
90 items in stock
Description
An intermediate switch is used when you have three switches controlling one light. A typical example of this is on a landing. There is a switch at the bottom of the stairs, one at top of the stairs and one at the end of the landing. On this circuit you would need the middle switch to be intermediate (i.e. the one at the top of the stairs) in order for all the switches to function properly. Flawless Screwless low profile metal design with matching metal rocker. - 10AX rated - Screwless low profile design with built in gasket - Certified to EN 60669-1 - Minimum mounting box 16mm
Read moreShow less
Product Details
SF1200AT

Technical Specifications

Item Number
161121
Finish
Anthracite
Material
Premium Grade Steel
IP Rating
IP20
Height (cm)
8.75
Width (cm)
8.75
Projection (cm)
0.43
Class
Class I
Weight (kg)
0.1705
Recess Depth (cm)
1.6
Colour
Black
Height Range (cm)
0 - 20
Categories
10A Plate Switches
